Procurement + HIL · Shadow photography · storage tiers · illustrative package $18,374

Storage tiers (Shadow 1 and Shadow 2)

POC lab: 128 GB eMMC Demo / pilot / future deployments: minimum 1 TB eMMC

Product video — Shadow fleet

What the units look like in motion and how edge AI is positioned for transit.

Loading stream…

Two roles, one fleet language

Role	Job on the bus	Form factor
Shadow 2	Environment hub — multi-lens, Axis VAPIX ingest, primary detections	Wider industrial body
Shadow 1	Action / canary node — compact, deterrent path when equipped	Cube industrial body

Public docs use Shadow 1 / Shadow 2 labels (not physical site names).

Shadow 2 — environment node

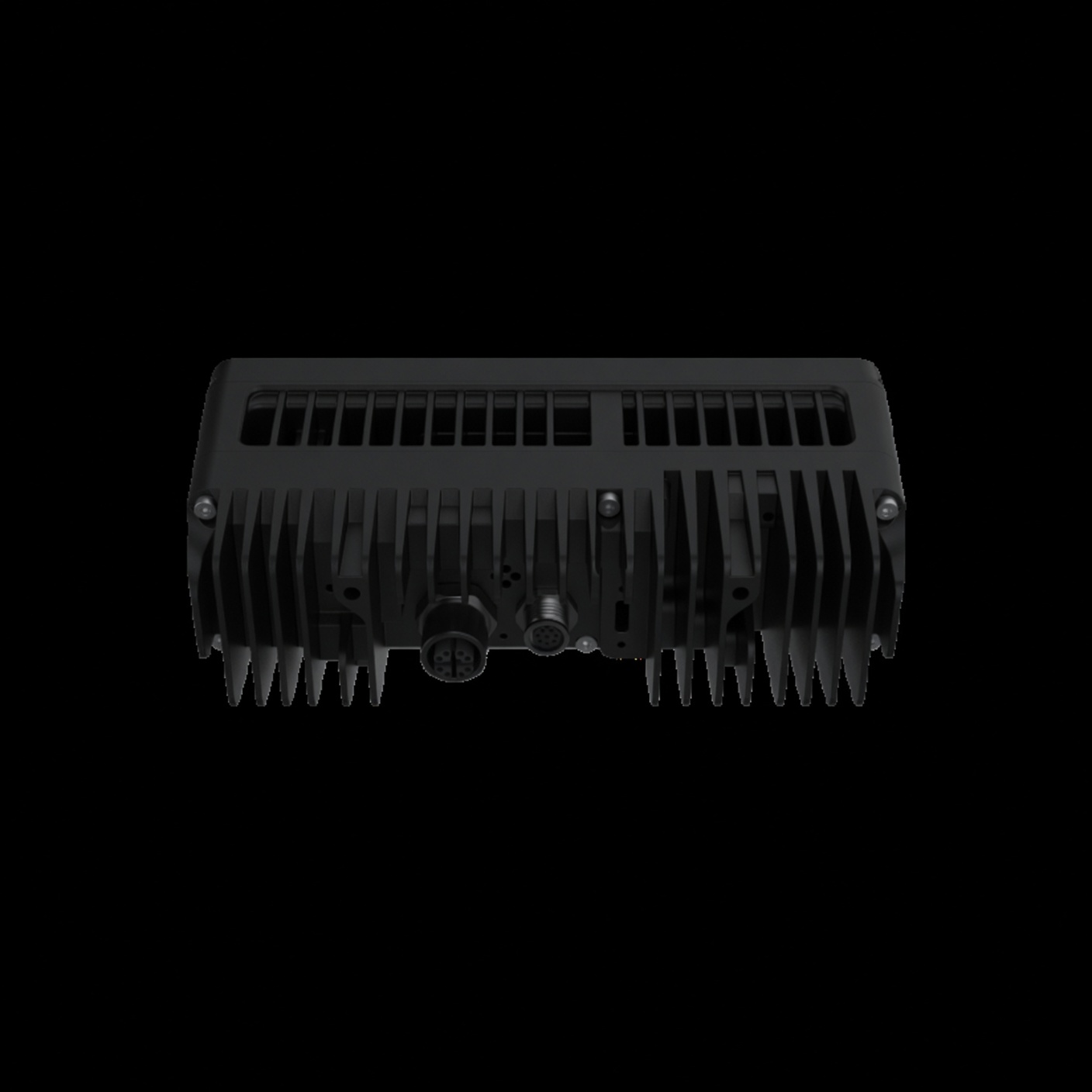

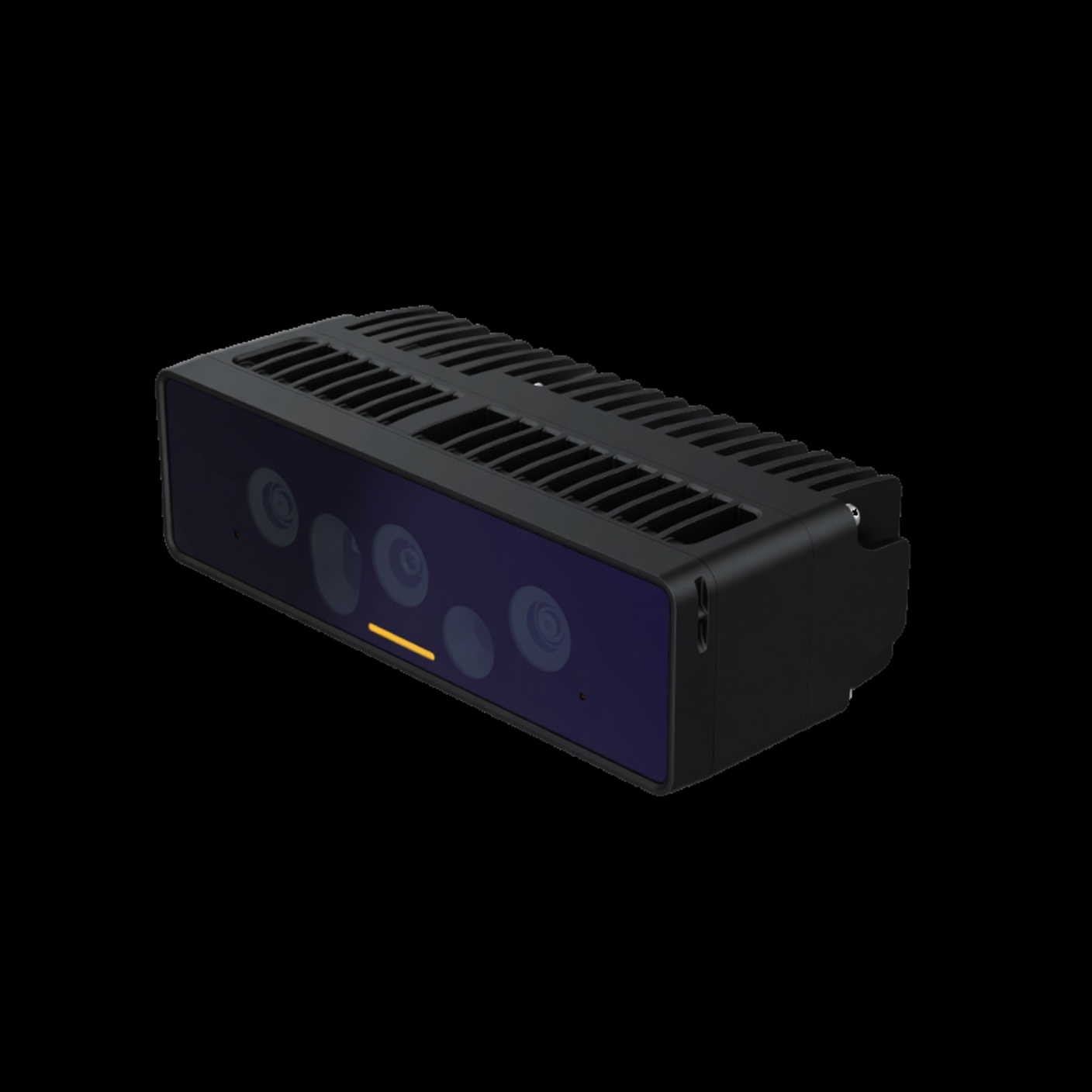

Front — multi-lens array, status LED	Rear — dual M12 industrial + service ports

Attribute	Spec
Role	Primary edge hub / environment node
Memory	8 GB LPDDR5 class
Storage	POC: 128 GB eMMC · Pilot+: min 1 TB eMMC
AI	~52 TOPS (DSP + GPU class)
Sensors	Multi-lens depth / RGB suite
Legacy	Axis VAPIX proxy for stream ingestion
Enclosure	IP67 industrial aluminum
Network	2.5 Gbps M12 PoE+ class

Shadow 1 — action node

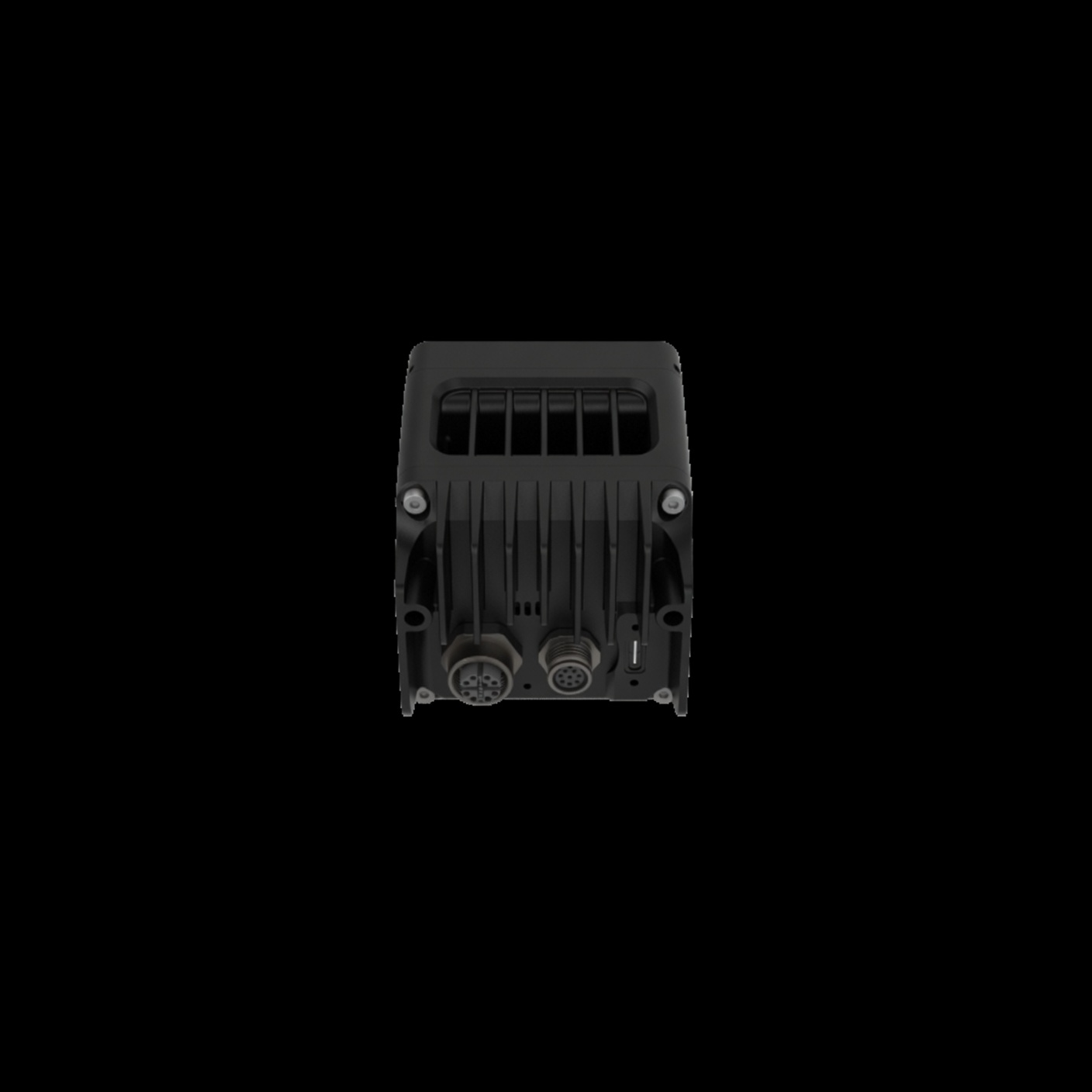

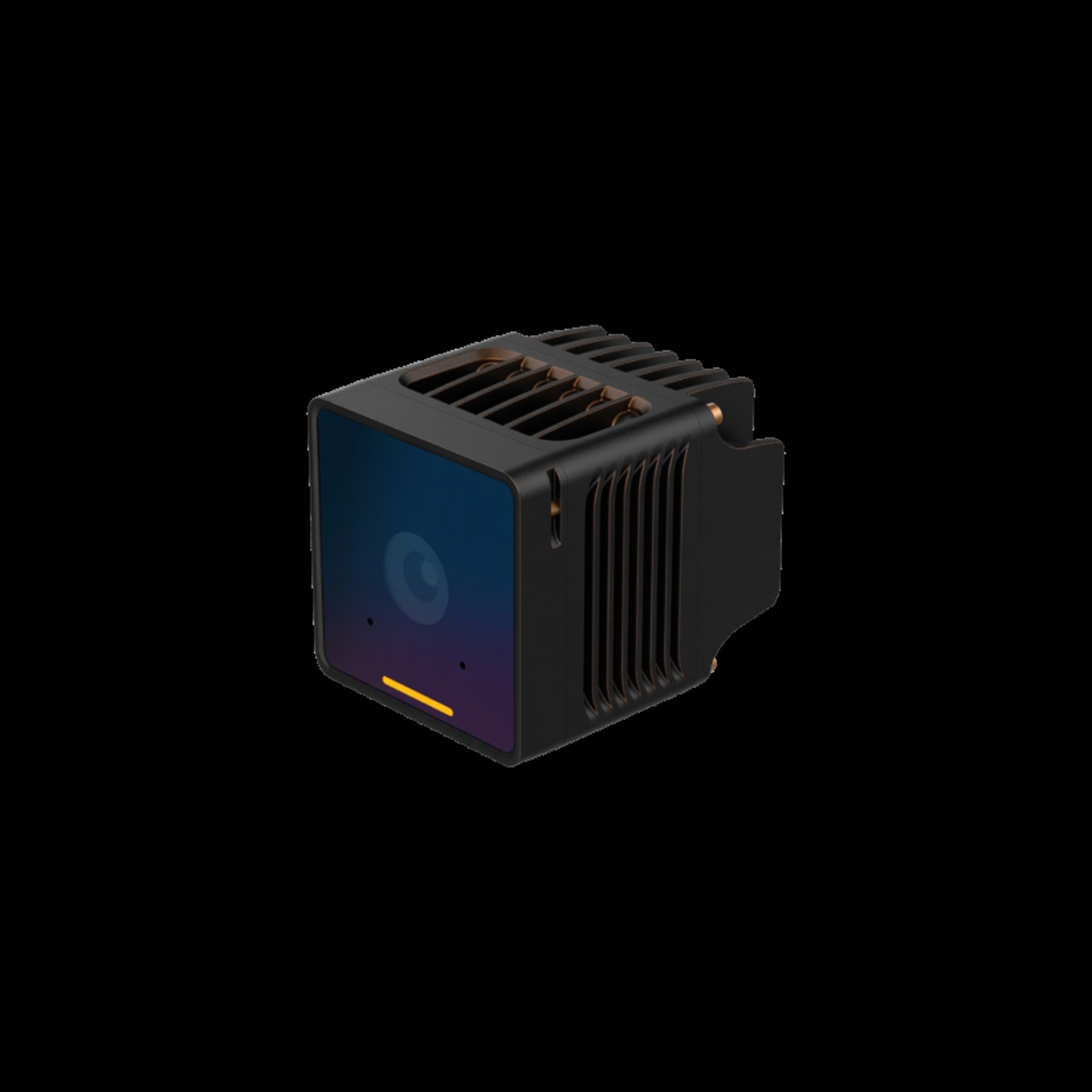

Front — single primary optic, status LED	Rear — dual M12, compact heatsink

Attribute	Spec
Role	Compact action / canary node
AI	~52 TOPS neural class
Sensor	48 MP RGB class
Storage	POC: 128 GB eMMC · Pilot+: min 1 TB eMMC
Enclosure	IP67 exterior bus mount class
Network	M12 PoE+ class

Axis array (legacy)

Item	Notes
5× Axis M-Series (or equivalent)	Already on vehicle or HIL
VAPIX / RTSP	Ingested by Shadow hub when configured
POC proxy path	Often 640×480 class for demo bandwidth

Network & mounts

Item	Notes
PoE+ switch	Power/data to Axis + Shadow
M12 ↔ Ethernet	Industrial bus cabling
Wireless router	5G + Wi‑Fi class
Mounts & M12 kit	Line item in executive package

Host compute

Mac Studio materials — HIGHLY RECOMMENDED, ≥1 TB host storage.

Package total

See Executive investment — $18,374 illustrative (includes Mac markup + 7-day stability support).
